12V max CXT™ Lithium-Ion Jig Saw Kit (VJ04R1).
Model number
|
VJ04R1
|
VJ04Z
|
Name
|
12V max CXT™ Lithium-Ion Jig Saw Kit
|
12V max CXT™ Lithium-Ion Jig Saw (tool only)
|
Length of Stroke
|
11/16”
|
11/16”
|
Max Cutting Capacity at 90°
Wood
Mild Steel Aluminum |
2-9/16” 1/16”
5/32” |
2-9/16” 1/16”
5/32” |
Stroke per Minute
|
0 - 2,900
|
0 - 2,900
|
Blade Shank
|
“T” Tang
|
“T” Tang
|
Battery
|
12V max Lithium-Ion
|
12V max Lithium-Ion
|
Overall Length
|
9-1/8”
|
9-1/8”
|
Net Weight (w/battery)
|
3.8 lbs.
|
3.8 lbs.
|
Includes:
|
Tool, Jig Saw Blade, (2) 12V max CXT™ Lithium-Ion 2.0Ah Battery (BL1021B), 12V max CXT™ Lithium-Ion Charger (DC10WD), Tool Case
|
Tool, Jig Saw Blade
|
Model number
|
CC02R1
|
CC02Z
|
Name
|
12V max CXT™ Lithium-Ion
3-3/8” Tile/Glass Saw Kit |
12V max CXT™ Lithium-Ion
3-3/8” Tile/Glass Saw (tool only) |
Blade Diameter
|
3-3/8”
|
3-3/8”
|
Arbor
|
15 mm
|
15 mm
|
No Load Speed
|
1,600 RPM
|
1,600 RPM
|
Cutting Capacity (90°)
Cutting Capacity (45°)
|
1”
5/8”
|
1”
5/8”
|
Battery
|
12V max CXT™ Lithium-Ion
|
12V max CXT™ Lithium-Ion
|
Overall Length
|
12-3/8”
|
12-3/8”
|
Net Weight (w/battery)
|
4.2 lbs.
|
4.2 lbs.
|
Includes:
|
Tool, 3-3/8" Diamond Blade (A-95722), (2) 12V max CXT™ Lithium-Ion 2.0Ah Battery (BL1021B), Charger (DC10WD), Tool Case
|
Tool only
|
Model number
|
ML103
|
Name
|
12V max CXT™ Lithium-Ion
L.E.D. Flashlight (Flashlight only) |
Run time (max in hours, w/ 12V 4.0Ah battery)
|
28
|
Lumens
|
100
|
Bulb
|
1 L.E.D.
|
Battery
|
12V max CXT™ Lithium-Ion
|
Overall Length
|
3-7/16”
|
Net Weight
(w/12V 2.0Ah battery) |
0.6 lbs.
|
Includes
|
Flashlight only
(battery & charger sold separately) |
The 12V max CXT™ Jig Saw is a compact and convenient cutting solution.
The 12V max CXT Tile/Glass Saw includes a 16.9 oz. water supply tank for wet cutting applications.

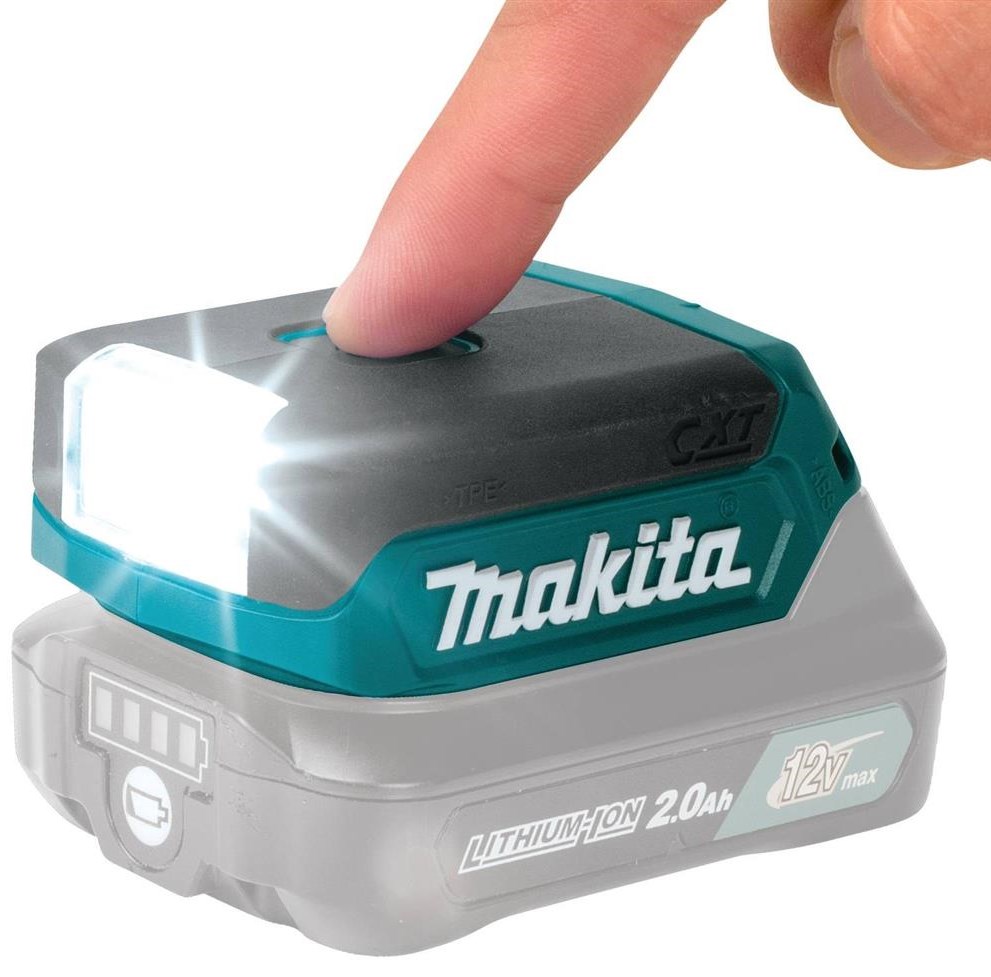

The 12V max CXT™ L.E.D. Flashlight is a portable and ultra-compact light source, with up to 28 hours of continuous illumination when used with the 4.0Ah battery (sold separately).
